Understanding Micron Ratings in Liquid Filtration Systems
By FiltraCore Asia — Technical Insights Series
Introduction: Why Micron Ratings Matter in Liquid Filtration
Micron ratings are one of the most referenced specifications in liquid filtration systems, yet they are also among the most misunderstood. In practice, a micron rating influences filtration efficiency, pressure drop behaviour, cartridge service life, and downstream equipment protection.
In industrial liquid filtration, incorrect interpretation of micron ratings often leads to premature filter blockage, unstable differential pressure, membrane fouling, or unnecessary operating cost. Selecting the smallest micron rating is rarely the correct approach. Selecting the appropriate micron rating within a staged filtration strategy is what delivers reliable system performance.
This article explains micron ratings from a practical, engineering-led perspective, not a marketing one.
What Is a Micron Rating?
A micron (µm) is one-millionth of a metre. In liquid filtration, a micron rating indicates the approximate particle size a filter is designed to retain.
For context, human hair is approximately 40–90 µm, fine sand is about 100–300 µm, silt ranges from 10–50 µm, and bacteria typically fall between 0.5–5 µm.
A 5-micron filter is therefore intended to capture particles around 5 µm and larger. However, the reliability of this capture depends on how the filter is constructed and how the micron rating is defined.
Micron Rating Does Not Mean “Pore Size”
A common misconception is that a micron rating represents a fixed hole size, similar to a mesh screen. This is not true for most industrial liquid filters.

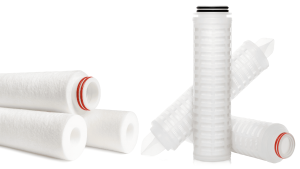

Depth filtration media such as melt-blown or string-wound cartridges capture particles throughout the thickness of the media using multiple mechanisms, including interception, inertial impaction, and adsorption. Particle capture is probabilistic, not binary.
As a result, two filters with the same micron rating may perform very differently, dirt-holding capacity can vary significantly, and pressure drop behaviour is not solely defined by micron size. This is why micron rating must always be evaluated together with filter media type and construction.
Nominal vs Absolute Micron Ratings
A nominal micron rating indicates that a filter removes a percentage of particles at the stated size, typically between 60% and 98%, depending on test method and manufacturer definition. Nominal ratings are commonly used for depth filter cartridges, general process filtration, and pretreatment and bulk solids removal. They offer higher dirt-holding capacity and better tolerance to fluctuating contamination loads but do not guarantee full retention at the stated micron size.
An absolute micron rating indicates that a filter retains nearly all particles at the stated size under controlled test conditions, often defined as ≥99.9% efficiency. Absolute ratings are typical of pleated surface filters, final filtration stages, and critical equipment or membrane protection. They provide predictable particle retention but are more sensitive to upstream contamination spikes and pressure instability.
Why Smaller Micron Ratings Can Cause System Problems
Specifying an unnecessarily fine micron rating is one of the most common causes of filtration failure.
Over-filtration can result in rapid differential pressure increase, short cartridge service life, flow instability, and higher operating and maintenance costs.
In most industrial systems, a staged micron approach performs significantly better than a single fine filter. For example, 25 µm → 5 µm → 1 µm performs far more reliably than a single 1 µm filter handling the full contamination load. This approach stabilises loading, extends filter life, and protects downstream assets more effectively.
Typical Micron Rating Ranges and Their Roles
Rather than assigning micron ratings to industries, it is more accurate to assign them to filtration functions.
50–100 µm — Gross solids removal, strainers, debris protection
10–25 µm — Bulk solids reduction, pump and valve protection
5 µm — General process filtration, turbidity control, pretreatment
1 µm and below — Fine particulate control, membrane protection, final polishing
The correct micron rating depends on system intent, not marketing convention.
Technical Comparison: Nominal vs Absolute Micron Ratings
Nominal micron ratings are percentage-based (typically 60–98%), manufacturer-defined, and commonly used with depth media such as melt-blown and string-wound cartridges. They offer high dirt-holding capacity, more forgiving pressure drop behaviour, and are best suited for pretreatment and bulk removal, with particle bleed-through being the typical failure mode.
Absolute micron ratings provide near-total retention (≥99.9%), are tested under controlled and standardised conditions, and are typically associated with pleated surface media. They have lower dirt-holding capacity, are sensitive to loading, and are best suited for final filtration and critical protection, with rapid clogging being the common failure mode if misapplied.
| Parameter | Nominal Micron Rating | Absolute Micron Rating |
|---|---|---|
| Retention definition | Percentage-based (typically 60–98%) | Near-total retention (≥99.9%) |
| Test conditions | Manufacturer-defined | Controlled, standardised testing |
| Common media types | Depth (melt-blown, string-wound) | Pleated surface media |
| Dirt-holding capacity | High | Moderate to low |
| Pressure drop stability | More forgiving | Sensitive to loading |
| Best used for | Pretreatment, bulk removal | Final filtration, critical protection |
| Typical failure mode | Particle bleed-through | Rapid clogging if misapplied |
Common Micron Rating Failure Modes in Real Systems
In practice, filtration problems rarely arise from the micron number alone. They occur due to misalignment between micron rating, media type, and system conditions.
Typical failure scenarios include absolute filters installed without upstream pretreatment, nominal filters used where particle control must be guaranteed, fine micron filters exposed to unstable contamination loads, and housing design causing uneven flow distribution.
Micron rating must always be evaluated alongside flow rate, contamination profile, housing design, and changeout criteria.
How to Select the Right Micron Rating
A proper selection process begins with system intent. Key questions include what downstream component must be protected, what particle size causes failure or fouling, whether contamination is stable or variable, and whether pressure drop or cleanliness is the priority.
In most industrial liquid systems, precision filtration works best as a staged process rather than a single-point solution.
Where FiltraCore Asia Fits
FiltraCore Asia supports micron-optimised filtration strategies through its LFX™ Series of liquid filter bags and cartridges. The range covers multiple media constructions and micron ratings, allowing engineers to design filtration stages based on function, operating stability, and lifecycle cost.
The goal is not to specify the smallest micron rating, but to deliver reliable filtration performance with predictable service life.
Conclusion
Micron ratings are a powerful filtration design tool, but only when properly understood. They do not represent simple hole sizes, nor do they function independently of filter media, housing design, or operating conditions.
When applied correctly within a staged filtration strategy, micron ratings enable stable operation, asset protection, and cost-effective system performance. When applied blindly, they become a source of instability and maintenance issues.
Engineering judgement, not just a number, is what makes micron ratings work.
For readers seeking a deeper, academic treatment of filtration performance metrics, including filtration efficiency, capture mechanisms, and test methodologies, a technical overview is available on ScienceDirect. The reference compiles peer-reviewed engineering literature that explains how filtration efficiency is defined, measured, and interpreted across different filtration media and system designs, complementing the practical, application-focused discussion presented in this article.
