• Media & Construction: Pleated polyester filtration media with integrated end cap structure designed for high flow service.
• End Cap Material: PU, Plastisol
• Outer Diameter: 197 mm (7 3/4")
• Length: 245 mm (9 5/8"), 495 mm (19 1/2"), 781 mm (30 3/4")
• Micron Ratings: 0.35 µm, 1 µm, 5 µm, 10 µm, 20 µm, 50 µm
• Maximum Operating Temperature: 60 °C
• Maximum Operating Differential Pressure: 2.75 bar
• Quality Assurance: Produced under an ISO 9001:2015 certified quality management system; non fibre releasing; process controlled pleating and assembly.

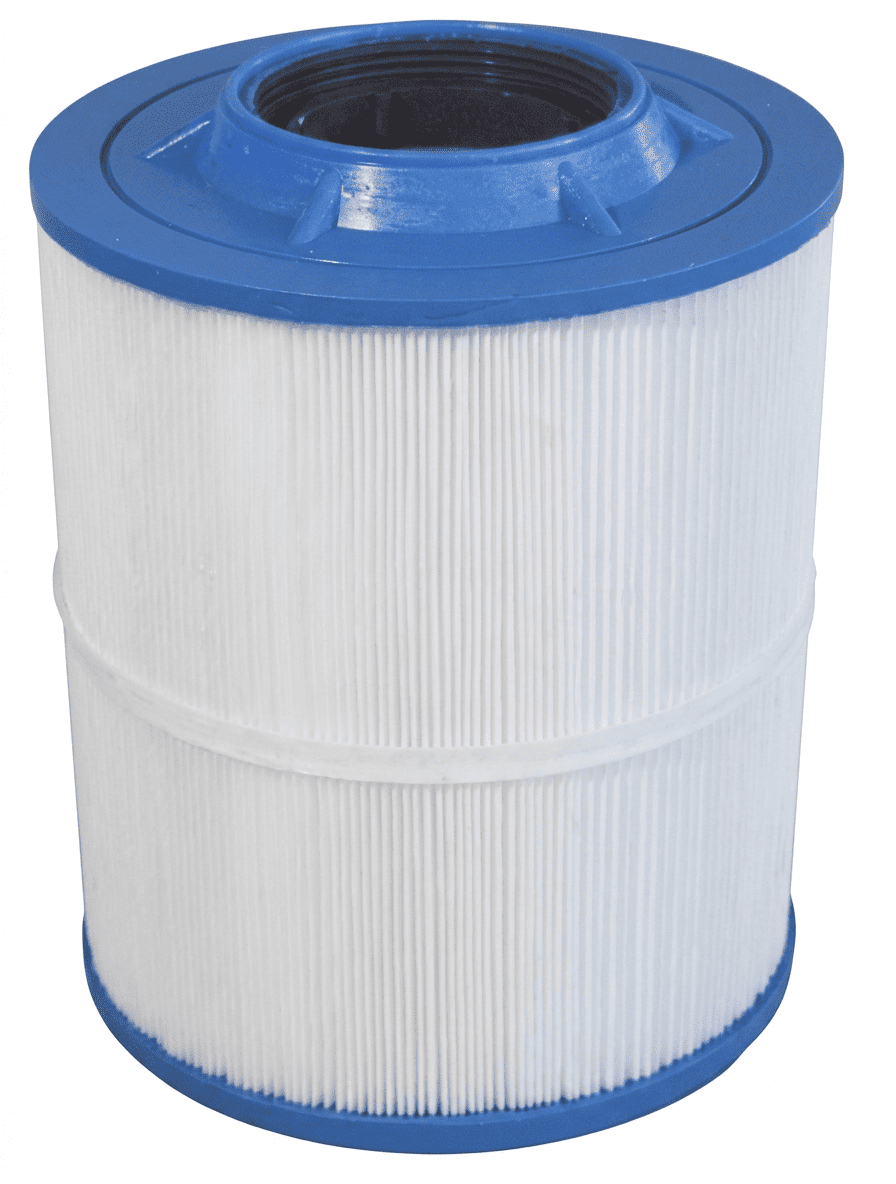

FiltraCore Asia’s LFX-CPLEAT-HF™ High-Flow Pleated Filter Cartridges are engineered using a large-diameter pleated polyester filtration platform designed for high-flow, low–differential-pressure liquid applications. With an expanded outer diameter of approximately 197 mm, the XL configuration provides a significantly increased filtration area, delivering higher flow rates, lower initial pressure drop and extended service life across industrial, commercial and utility-water systems.
Each LFX-CPLEAT-HF™ element is constructed using pleated polyester filtration media, supported by a rigid centre core and integrated end-cap structure to ensure consistent performance, dimensional stability and a reliable seal. The design is fully binder-free, adhesive-free and manufactured under an ISO 9001:2015 certified quality system, ensuring dependable particulate retention, predictable ΔP behaviour and long operating life in continuous-duty environments.
LFX-CPLEAT-HF™ is suitable for general liquid clarification, pre-filtration, commercial water treatment, industrial wastewater conditioning, cooling tower filtration, desalination pre-treatment, RO guard filtration and other high-flow applications requiring durable, cleanable and reusable pleated-media performance. The large-surface-area pleat geometry reduces change-out frequency and supports economical operation in demanding service conditions.
LFX-CPLEAT-HF™ is designed for dimensional compatibility with large-format pleated cartridges used in high-flow industrial systems, subject to application and dimensional verification.
