LFX C Series™ – Cartridge Filtration Excellence

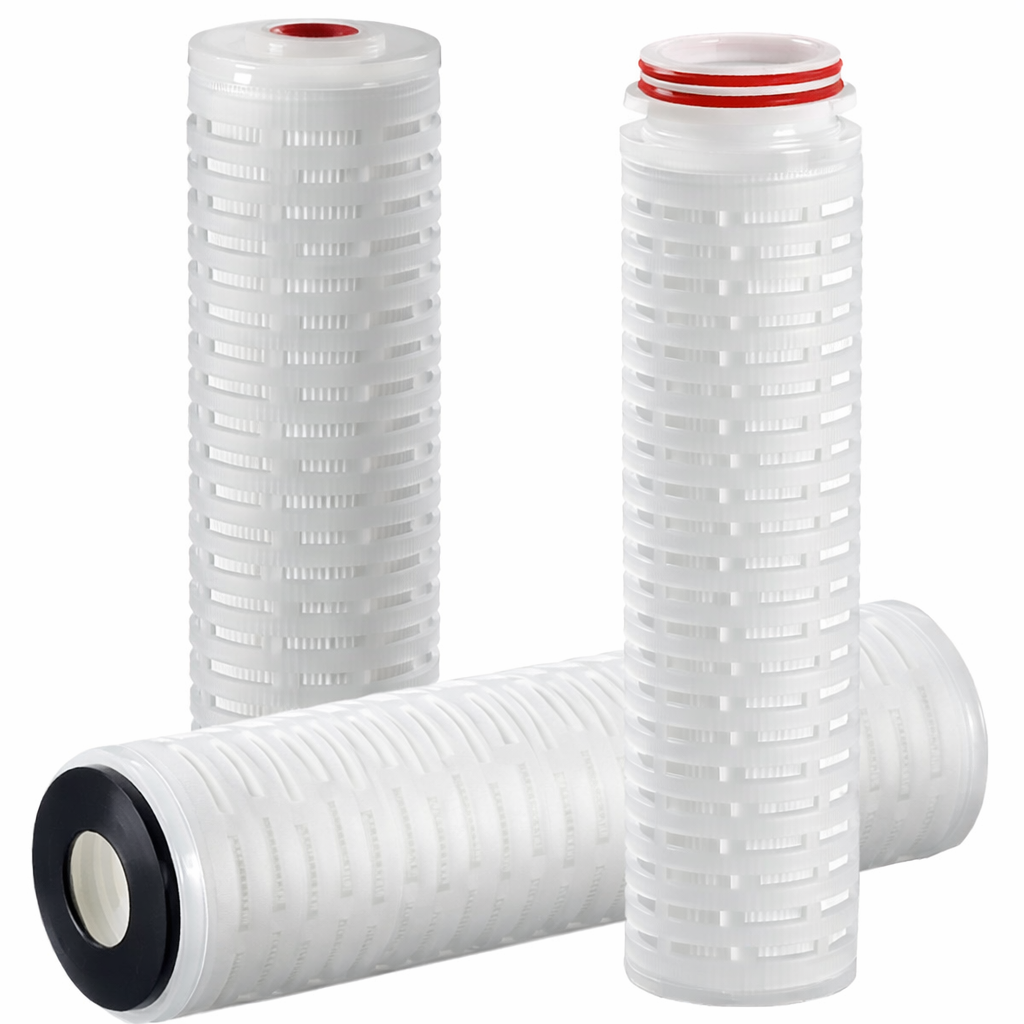

LFX-CPLEAT-PVDF™ Hydrophilic PVDF Membrane Pleated Filter Cartridges

FiltraCore Asia’s LFX-CPLEAT-PVDF™ Series comprises a complete portfolio of hydrophilic polyvinylidene fluoride (PVDF) membrane pleated cartridges engineered for sanitary, biopharmaceutical, high-purity industrial and food and beverage filtration applications. Developed around high-performance PVDF membrane technology, the series delivers ultra-low extractables, exceptionally low protein binding, high flow rates, low differential pressure, microbial retention capability and stable particulate removal across a broad range of critical-duty liquid processes.

All LFX-CPLEAT-PVDF™ cartridges are manufactured using PVDF membrane with polypropylene support layers, polypropylene core and cage assemblies, and thermally bonded adhesive-free construction to minimise extractables, ensure mechanical integrity and maintain consistent retention. The series supports sanitary, bioprocess, food-grade, high-purity industrial, and commercial applications requiring accurate, application-driven membrane performance.

PVDF VARIANTS

LFX-CPLEAT-PVDF-LB™ – Low-Binding PVDF Membrane Cartridges

Designed for biological, pharmaceutical and critical bio-liquid processing, LFX-CPLEAT-PVDF-LB™ uses a hydrophilic PVDF membrane characterised by ultra-low protein binding, low extractables, high flow rates and broad chemical compatibility. The membrane structure supports rapid wettability, reliable microbial and particulate retention, and high-clarity filtration performance across biological agents, antibiotics, culture media, serum-based intermediates and blood-derived liquids.

Cartridges are 100 percent integrity tested, serial-number tracked and manufactured under an ISO 9001:2015 certified quality management system. They utilise fully thermal-bonded construction with no adhesives and support 125 °C steam-in-place compatibility.

LFX-CPLEAT-PVDF-SAN™ – Sanitary-Grade PVDF Membrane Cartridges

Designed for sanitary and bioprocess manufacturing environments, LFX-CPLEAT-PVDF-SAN™ uses hydrophilic PVDF membrane with PSU or stainless-steel sanitary end-insert options, ensuring dimensionally reliable fit in sanitary housings. The design offers very low extractables, low protein adsorption, high flow rates and repeatable microbial retention, supporting applications such as culture media, vaccines, biological agents, food and beverage clarification, cell-culture clarification and protein purification.

Each element is 100 percent integrity tested, manufactured under ISO 9001:2015 certification, and validated for 0.22 μm microbial retention using Brevundimonas diminuta ATCC 19146.

Technical Specifications

LFX-CPLEAT-PVDF-LB™ — Low-Binding Hydrophilic PVDF Pleated Cartridge

• Media & Construction: Hydrophilic PVDF membrane with polypropylene support layers; polypropylene core, cage and end caps; fully thermal-bonded, adhesive-free construction ensuring ultra-low extractables, minimal protein binding and stable ΔP in bio-processing and pharmaceutical environments.
• Micron Ratings (Absolute): 0.1 μm, 0.22 μm, 0.45 μm, 0.65 μm, 0.8 μm, 1.0 μm, 5.0 μm.
• Nominal Lengths: 5 inch, 10 inch, 20 inch, 30 inch, 40 inch.
• Diameters: OD ≈ 2.7 inch (≈69 mm); ID ≈ 1.1 inch (≈28 mm).
• End Styles / Seals: DOE; SOE 222 flat, 222 fin, 226 flat, 226 fin. Elastomers: Silicone, EPDM, NBR (Buna-N), FKM, E-FKM.
• Temperature Limits: Max operating temperature 80 °C.
• Max dP (Forward): 4 bar @ 20–25 °C; 2 bar @ 80 °C.
• Steam Sterilization: 125 °C, 30 min.
• Filtration Area: 0.65 m² per 10-inch filter.
• Quality Assurance: ISO 9001:2015 manufacturing; manufactured in cleanroom environment; 100 percent integrity tested.

LFX-CPLEAT-PVDF-SAN™ — Sanitary-Grade Hydrophilic PVDF Pleated Cartridge

• Media & Construction: Hydrophilic PVDF membrane with polypropylene support layers; polypropylene core and cage; sanitary end caps with PSU or stainless-steel inserts; adhesive-free thermal bonding ensuring low extractables, high flow and consistent microbial retention.
• Micron Ratings (Absolute): 0.1 μm, 0.22 μm, 0.45 μm, 0.65 μm.
• Nominal Lengths: 5 inch, 10 inch, 20 inch, 30 inch, 40 inch.
• Diameters: Standard OD ≈ 2.7 inch (≈69 mm); ID ≈ 1.1 inch (≈28 mm).
• End Styles / Seals: DOE; SOE 222 flat, 222 fin, 226 flat, 226 fin. Elastomers: Silicone, EPDM, FKM.
• Temperature Limits: Max operating temperature 80 °C.
• Max dP (Forward): 4 bar @ 20 °C; 2 bar @ 80 °C.
• SIP / Autoclave: 125 °C, 30 min, 30 cycles.
• Bacterial Retention: Validated with Brevundimonas diminuta (ATCC 19146) at 10⁷ CFU/cm² for 0.22 μm membranes.
• Filtration Area: 0.65 m² per 10-inch filter.
• Extractables: < 20 mg per 10-inch cartridge.
• Quality Assurance: ISO 9001:2015 manufacturing; 100 percent integrity tested; manufactured in cleanroom conditions.

Applications

• Low-Binding (PVDF-LB™): Biological agents, antibiotics, culture media, disinfectants, nutrient solutions, blood products, buffers, pharmaceutical intermediates and bioprocess liquids requiring ultra-low protein binding and low extractables.
• Sanitary-Grade (PVDF-SAN™): Culture medium, vaccines, biological agents, food and beverage clarification, microbial and particulate retention, protein purification, cell-culture clarification and sanitary-stage polishing across bioprocess and pharmaceutical operations.
